Laboratory Coating Test Equipment Satellite Coater

SATELLITE
COATER

Coating equipment for research, where the coating head can be freely attached at any position, whether top, bottom, vertical, or both sides, around the backup roll.
It can be changed to top, bottom, or vertical coating according to the viscosity of the liquid.
Aimed at small-quantity applications, this equipment is ideal for universities and corporate research labs.

Specifications

Width: max. 400mm

Speed: 0.1 to 3.0 m/min

Drying: 0.6 m × 1 chamber, max. 150°C

Ultra-compact and fits perfectly in a lab!

With a minimum size of L 2000 mm × W 2000 mm × H 2000 mm, it is ideal for laboratory use!
This size allows for both small-quantity and continuous coating. The bar-type coating head is also compatible with batch coating machines.

The coating head can be set at any angle relative to the film surface!

The access to the film surface can be adjusted according to the liquid viscosity.
For high viscosity, the top scraping method is used; for low viscosity, the bottom lifting method is used, and impregnation and double-sided coating can be performed with the vertical lifting method.

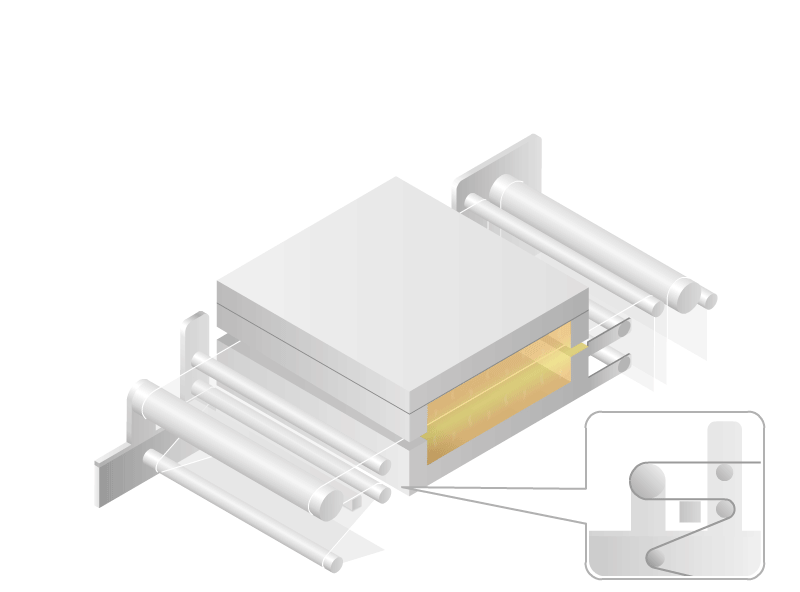

The dryer can also rotate horizontally and vertically!

The dryer position can be changed according to the position of the coating head.
Top and bottom coating is set in a horizontal position, and impregnation and double-sided coating are set in a vertical position, and the position can be changed instantly with a handle operation.

Various customizations are possible!

Despite being ultra-compact, it allows for unit separation, enabling various customizations. (Custom modifications available)

- Coating head can be changed to die, knife, gravure, or impregnation types.
- Change the drying furnace to a UV irradiation device or coagulation bath.
- Change the winding device to touch-type or protective material lamination, etc.
